Overview

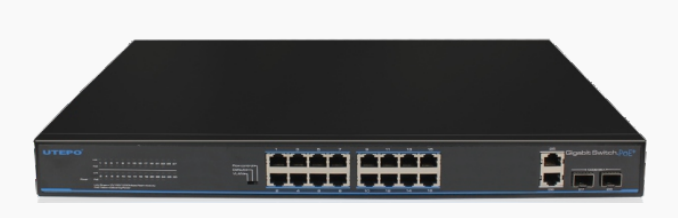

This series products are 16-Port/24-Port Gigabit PoE + 2-Port Gigabit SFP + 2-Port Gigabit Copper Ethernet Switch.
This series switches provide 16/24 Gigabit Ethernet RJ-45 downlink ports, 2 Gigabit Ethernet RJ-45 uplink ports and 2 Gigabit SFP
uplink ports. All RJ-45 downlink ports support Power-over-Ethernet (PoE+) and deliver up to 30W power per port.
The switches support working in three modes: default, VLAN, and flflow control. It can be widely used in video security monitoring
systems, network projects, etc.
This series contains two types:
• UTP3-GSW1604TS-P200: 16-Port Gigabit PoE + 2-Port Gigabit SFP + 2-Port Gigabit Copper Ethernet Switch
• UTP3-GSW2404TS-P420: 24-Port Gigabit PoE + 2-Port Gigabit SFP + 2-Port Gigabit Copper Ethernet Switch
Features and Highlights
Abundant Interfaces
• UTP3-GSW1604TS-P200: 16*10/100/1000Base-T PoE RJ-45 ports
UTP3-GSW2404TS-P420: 24*10/100/1000Base-T PoE RJ-45 ports
• 2*10/100/1000 Base-T RJ-45 Ports
• 2*1000 Base-X SFP ports
High Peformance Design
• 6kV surge immunity
• 6kV contact discharge, 8kV air discharge ESD protection
• Metal shell design
• Rack mounted / desktop / wall mounted installation
Support 3 Working Modes
• Default: all ports are free to communicate.
• VLAN: downlink ports are isolated from each other, but can
communicate with uplink ports.
• Flow control: enable flflow control function, this mode is suitable for
video surveillance transmission.
