Application Environment
|
Forest Fire Prevention |
Army Border Guard |
The Army Defends the Coast |
Ships |
A shipping port |
Unlike manual zoom lenses,electric zoom lenses are generally used in a wide range of outdoor scenes and generally cover a wide focal length range.Because the focal length can be artificially changed through the back end,for the important parts of the scene can be closer to zoom in and see,the monitoring effect is very good.With the continuous development and improvement of the security industry,as well as the increase of state investment in infrastructure,such as urban security,highways,railways,forest fire,maritime management,ports,border defense,oil fields and other industries for electric zoom lens demand has been very large growth.
Main Features
| Material | Aluminum Alloy +industrial plastics (with powder coating) |
| Protection Class | IP66 |
| Working Temperature | -40℃~+70℃ |
| Working Humidity | <90% |
| Video | IP |
| Visible Resolution | 2MP |
| Visible Focal Length | 30x optical zoom |
| Thermal Resolution | 640*512 |
| Thermal Length | 35mm |
| Motor&Transmission Method | Torque Direct-Drive Motor,Precision Spur Gear Transmission |
| Rotation Range | Horizontal:0~360°(0.04°~114°/s) Vertical:-90°~+90°(0.04°~87°/s) |
| Function | T-Type Bilateral Load(1.7KG per side),Electronic Image Stabilization,Electronic Fog Penetration,Human-Vehicle-Vessel-Non-Living Object Recognition |
| Voltage | DC10~36V(≤8W) |
| Weight | ≤4kg |
| Dimensions(H*L*W) | 170*320*170mm |
| Mounting | Formal Installation,Four-Point Base Fixation |

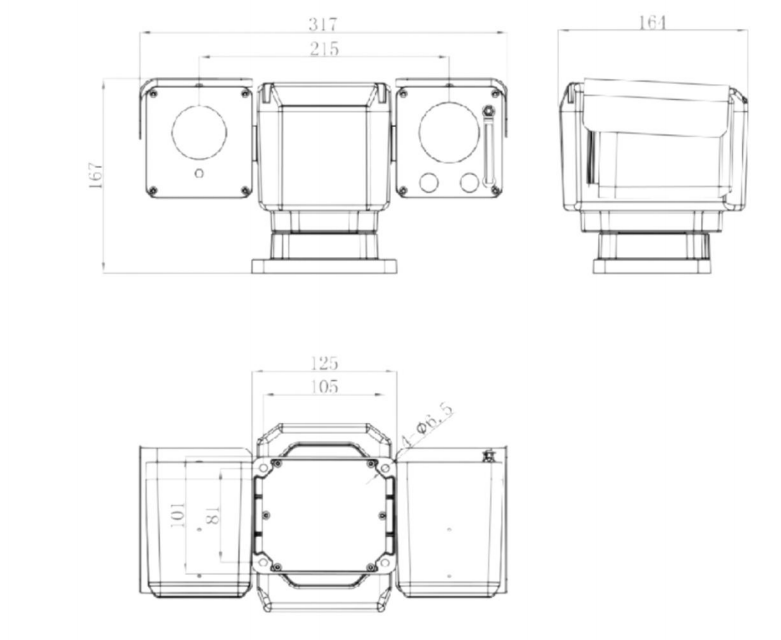

Dimension
