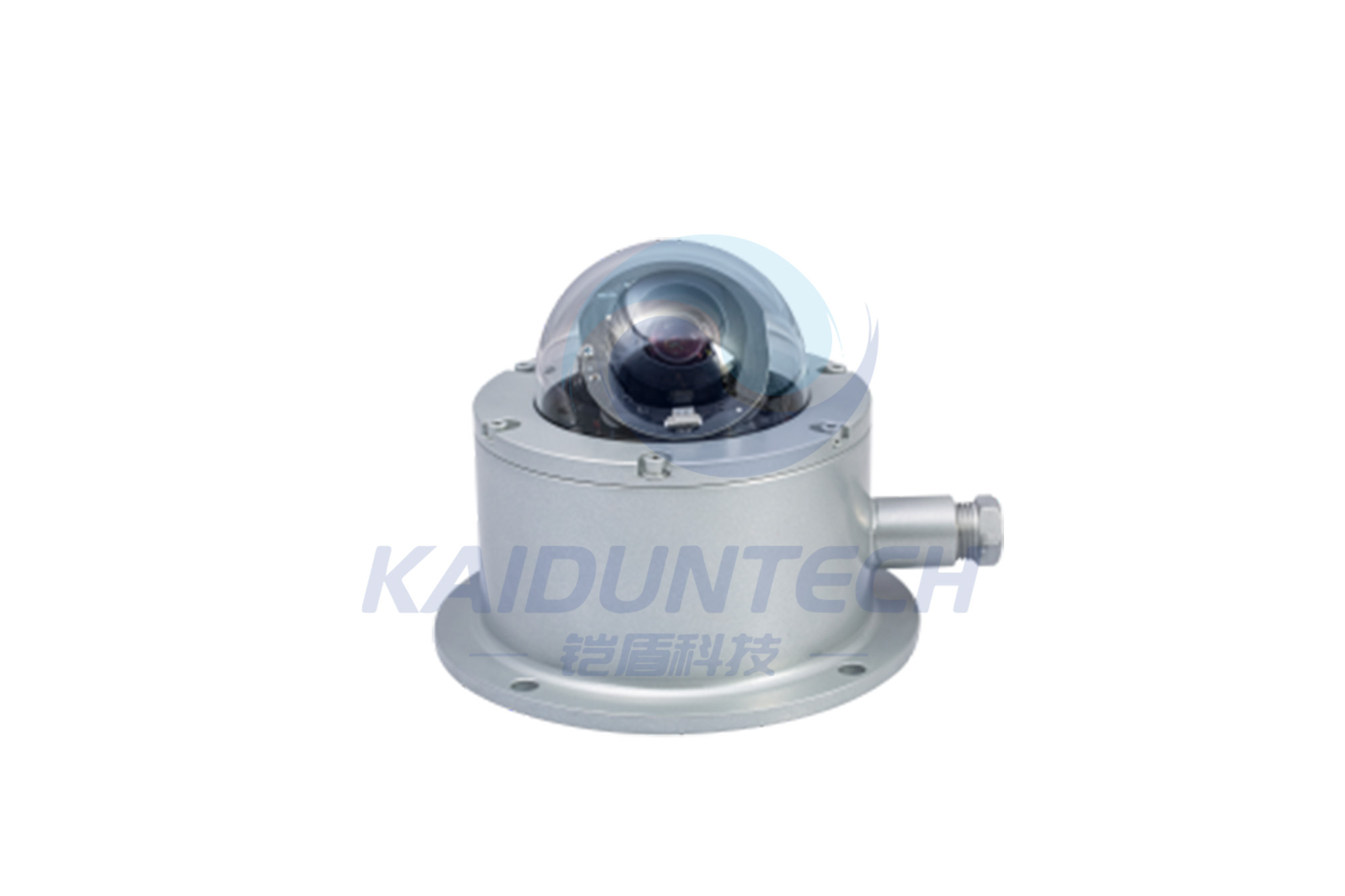

Name: DNV Type Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera
Brand: KAIDUNEX
SKU: KDQ-EX-PTZ****IR04
Availability: InStock
Rating: 5 (1 reviews)

Description

Targeted Surveillance for Marine and Offshore Operations
This DNV type approval camera is engineered specifically for maritime professionals requiring dependable monitoring solutions in highly corrosive and extreme conditions. Its anti-corrosion camera design offers resilience against saltwater exposure, appealing to vessel operators, offshore platform managers, and coastal security teams. The system addresses critical surveillance needs where compliance with marine standards and classification society approval is mandatory. These users benefit from a compact yet powerful marine CCTV cameras system solutions tool designed to enhance operational safety and situational awareness during continuous maritime activities.

Advanced Features for Harsh Marine Environments
Equipped with a corrosion-resistant stainless steel 316L enclosure coated for extended durability, the mini PTZ camera supports rugged IP68 ingress protection, ensuring water and dust resistance. Its operational temperature range spans from -30℃ to +60℃, accompanied by vibration tolerance, highlighting its endurance in extreme conditions. Optical zoom options of 5x and 12x combined with 2MP or 4MP resolution provide detailed imaging suitable for varied surveillance requirements. Additionally, integrated infrared illumination allows for zero-lux night vision, enhancing security visibility in low-light marine areas. The system supports flexible power and network integration through PoE or DC12V power supply and IP video transmission for seamless compatibility with existing infrastructures.

Marine Industry Integration and Compliance Benefits
This anti-corrosion camera conforms strictly to DNV Type Approval, guaranteeing compliance with marine standard camera requirements and classification society approval processes. Ideal for deployment across vessels, offshore oil rigs, and coastal installations, the camera reinforces safety monitoring, asset protection, and regulatory adherence. Its weatherproof and corrosion-resistant build safeguards long-term functionality in aggressive saltwater environments typical in marine zones. Consequently, the device not only optimizes operational security but also minimizes maintenance overhead associated with environmental wear, proving indispensable in comprehensive marine CCTV cameras system solutions.

Product Advantages

Design Robustness and System Compatibility
Featuring a stainless steel 316L housing with enhanced powder coating, this camera’s structural design prioritizes corrosion resistance and physical durability crucial for marine applications. Its mini PTZ mechanism enables extensive pan (0-355°) and tilt (0-90°) ranges along with optical zoom, promoting broad coverage with fewer installations. The product integrates cleanly into existing marine CCTV cameras system solutions through IP video transmission and dual power support (PoE/DC12V), simplifying network architecture and installation logistics. These characteristics reflect a modular engineering approach to meet classification society approval requirements and marine standard camera specifications, supporting system scalability and long-term operational reliability.

Operational Efficiency and User-Centered Performance
High image quality with progressive scan CMOS sensors ensures precise monitoring data, essential for maritime security and compliance documentation. The inclusion of infrared night vision and 0 lux illumination significantly enhances usability in nocturnal or low-visibility environments. Remote control capabilities provide operational flexibility, reducing personnel exposure to hazardous areas. This anti-corrosion camera’s robust design translates into lower failure rates and reduced maintenance, optimizing total cost of ownership. Operators gain dependable real-time surveillance, facilitating critical decision-making processes in marine zones, thereby boosting overall system effectiveness within marine CCTV cameras system solutions.

Type	KDQ-EX-PTZ****IR04
Material	Stainless Steel 316L
Protection Class	IP68
Temp.range min	-30℃
Temp.range max	+60℃
Vibration(0-100Hz)	0.7g
Video	IP
Operational Areas	Outdoor
Mounting	Wall mounted ,Ceiling Mounted
Wiper	N/A
Pan/Tilt	Remote operated
Rotation Vertical	0-90°
Rotation Horizontal	0-355°
Surface	powder coating
Resolution	2MP,4MP ,etc
Zoom	5x ,12x
Image Sensor	1/2.8" Progressive Scan CMOS
Min. illumination	Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR
CCTV add-on	Anti-Flicker ,heartbeat,mirror ,privacy mask etc
Voltage	PoE /DC12V
Net Weight	3.5kg

Use Scenarios

Surveillance on Offshore Platforms under Marine Corrosion Stress
Offshore oil and gas platforms operate in corrosive saltwater environments demanding specialized monitoring equipment. This DNV type approval camerais deployed to maintain continuous oversight of personnel activities and structural integrity under harsh climate conditions. Its anti-corrosion camera housing withstands saline and humidity exposure, while IP68 certification guarantees water tightness even in turbulent sea conditions. Integrated with remote monitoring systems, it enables real-time alerts and operational control compliant with classification society approval standards. This facilitates systematic safety checks and regulatory compliance, enhancing the platform’s operational safety framework through a reliable marine CCTV cameras system solution.

Coastal Security and Harbor Surveillance Applications
Harbor facilities and coastal defense installations necessitate resilient marine standard cameras to manage security and operational monitoring. This mini PTZ solution supports flexible wall or ceiling mount configurations tailored to varied infrastructure designs. Its corrosion-resistant construction and extensive pan/tilt angles provide comprehensive surveillance coverage to detect unauthorized access or environmental threats. Additionally, the camera’s IR illumination ensures operational capability during nighttime or foggy conditions typical in coastal zones. Integration into centralized security networks leverages IP transmission capabilities, achieving effective monitoring and swift incident response. As a result, this camera system facilitates robust perimeter defense aligned with marine CCTV cameras system solutions requirements.

FAQ

What makes this camera compliant with marine industry standards?
The camera holds a DNV Type Approval, certifying its compliance with rigorous marine regulatory requirements. This marine standard camera features corrosion-resistant Stainless Steel 316L housing and IP68 protection, ensuring durability in harsh maritime environments.

Can this anti-corrosion camera be customized for specific industrial applications?
Yes, Kaidun designs special monitoring equipment tailored to various fields including offshore platforms and vessels. Custom options can address site-specific demands such as explosion-proof certification, power supply, and mounting methods to suit your operational needs.

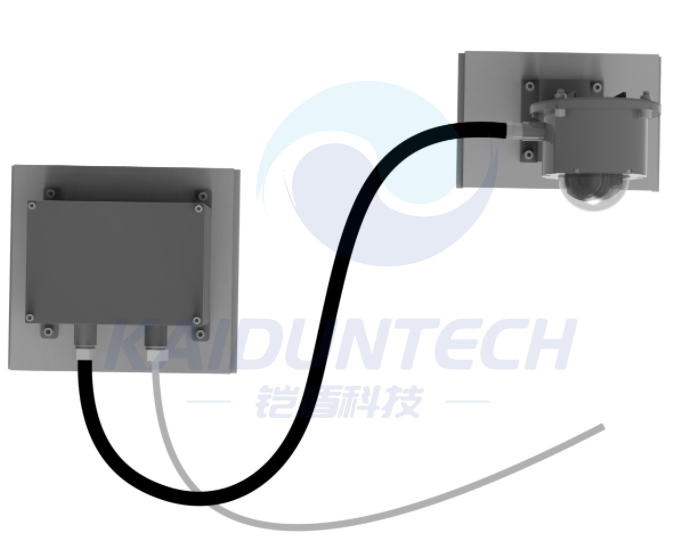

What installation options are available for the mini PTZ IR dome camera?
This product supports flexible mounting including wall and ceiling installations. Its compact, corrosion-resistant design and support for PoE/DC12V power enable straightforward integration into existing marine CCTV cameras system solutions for secure, reliable surveillance.

How do I maintain the camera to ensure long-term corrosion resistance?
Routine cleaning of the stainless steel surface and checking the IP68 seals can help maintain performance. The robust 316L stainless steel with powder coating minimizes saltwater damage, essential for any anti-corrosion camera used in marine environments. Regular inspections are recommended for optimal reliability.
